Ultra Series-Belt transmission

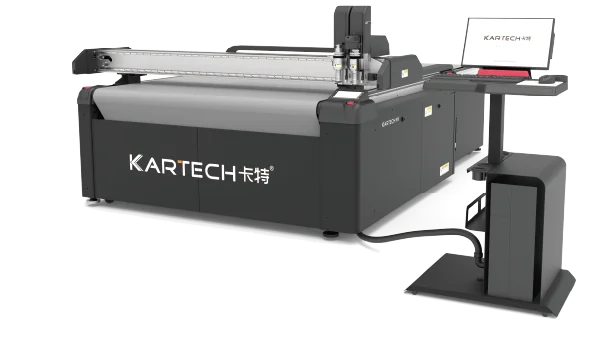

Ultra 1625 is a high-performance model series designed for industrial cutting and laminating applications. Positioned as a mid-to-high-end processing equipment with high precision and outstanding stability, it is widely suitable for industries such as signage advertising, packaging and printing, and board processing. It features efficient cutting of complex graphics and high-quality lamination, balancing productivity and finished product texture perfectly.

Send Enquiry
Request a Quote
Ultra Series-Belt transmission
Product Display
Explore our comprehensive product line, each designed to excel in specific applications and material types.
Ultra Series-Belt transmission Features
01

· Y-axis synchronously driven by dual 1200W servo motors + planetary

reducers, The transmission structure is greatly simplified, effectively

reducing the failure rate of mechanical transmission.

· Adopts a Field-bus Aabsolute encoding servo system

· The Ultra frame is integrally welded and formed, with an omni-

directional diagonal bracing design to enhance structural rigidity.

The gantry support structure is reinforced to withstand greater inertia.

· Match the ultra-fast cutting speed of the Ultra KT, the Z and W axes

adopt 150W servo motors, while the X axis adopts a 1200W servo

motor, achieving faster response speed for the W and Z axes and

higher running speed for the X axis.

· Wider and more robust X&Y axis timing belts deliver greater driving

force to the moving structures.

FAQ
We are always listening and welcome any questions you may have.

Q. Q: How much faster is the Ultra model compared with ordinary belt-driven machines?

A: The cutting speed is limited by the cutter/blade type and material hardness, so the improvement in actual cutting speed is not significant.
