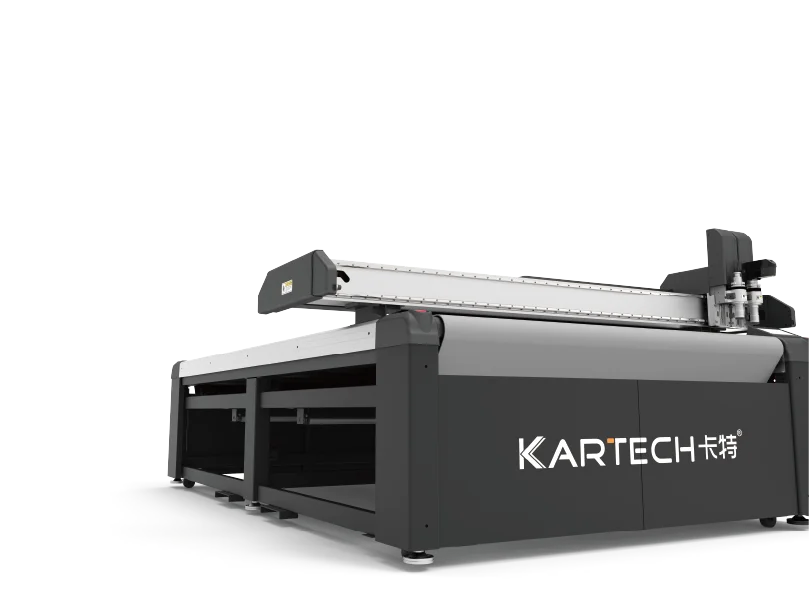

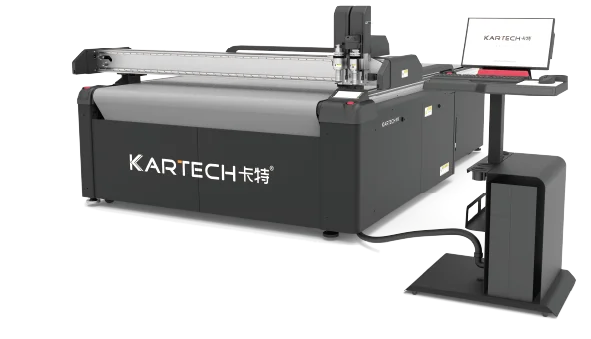

Ultra 1625 is a high-performance model series designed for industrial cutting and laminating applications. Positioned as a mid-to-high-end processing equipment with high precision and outstanding stability, it is widely suitable for industries such as signage advertising, packaging and printing, and board processing. It features efficient cutting of complex graphics and high-quality lamination, balancing productivity and finished product texture perfectly.
Cutting Material: All kinds of corrugated cardboard,Yellow PVC foam board,Acrylic,KT boad, Alumin car sticker Adhesive，Reflective film，Photo cardboard red cardboard,PVC board，Honeycomb board，Umplastic board，Fiber midsole and rubber board,Thick foam，Paper，Photo PVC,etc.
Category: Ultra Series-Belt transmission
Email: info@fayontech.com
· Y-axis synchronously driven by dual 1200W servo motors + planetary reducers, The transmission structure is greatly simplified, effectivelyreducing the failure rate of mechanical transmission.
· Adopts a Field-bus Aabsolute encoding servo system
· The Ultra frame is integrally welded and formed, with an omnidirectional diagonal bracing design to enhance structural rigidity.
The gantry support structure is reinforced to withstand greater inertia.
· Match the ultra-fast cutting speed of the Ultra KT, the Z and W axes adopt 150W servo motors, while the X axis adopts a 1200W servo motor, achieving faster response speed for the W and Z axes and higher running speed for the X axis.

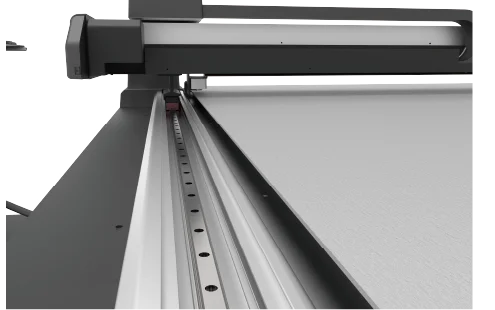

· Wider and more robust X&Y axis timing belts deliver greater driving force to the moving structures.
Parameter
|
Series-Para Comparison |
|
|
|
|
|
KT |
Ultra KT |
XT |
GK |
|
|
Transmission Type |
High-tension, low-elongation timing belt |
High-tension, low-elongation enhanced timing belt |
High-precision ground helical tooth Rack&Pinion |
|
|
Processing Size Available |
900*1200mm,1300*1300mm, 1300*2500mm,1600*2500mm |
1600*2500mm |
1300*2500mm,1600*2500mm |
1300*2500mm,1600*2500mm, 2500*3000mm,2500*4000mm, 3200*2500mm,3200*3000mm, accept customized sizes |
|
Processing Thickness |
50mm |
50mm(default)/100mm(optional) |
||
|
Max empty loading Speed |
120m/min |
240m/min |
120m/min |
150m/min |
|
Vacuum Zone Control |
4 areas control in software |
8 areas control in software |
||
|
Vacuum Station |
7.5kw with noise reduction and back-blow control functions. |
1*7.5kw /2*7.5kw with noise reduction and back-blow control functions. |
||
|
Repeatability control Precision |
≤0.01mm |
|||
|
General Power |
9.5kw |
11.8kw |
10.5kw |
10.5/18kw |
|
Tool holder number |
2(Default)/3(Optional) |
|||
|
CCD camera position system |
Available by default |
|||
|
Slidding system |
HIWIN Silent gear and High-end linear guide rail |
|||
|
Felt Conveyor Feeding |
unlimited feeding available by default |
|||
|
Touch screen running |
Available |
Not Available |
||
|
Drive System |
High-end servo motor and driving system |
|||
|
Tool setting device |
Available |
|||
|
Security Protection |
Non-contact infrared safety protection combined with contact physical safety protection |
|||
|
Feeding Guide Felt |
Exclusive patented guide groove felt |
|||
|
Scan&Back-cut |
Available |
|||
Cut Video
